China Composite Lost Wax Investment Casting Factory

Zhiye Mechanical is one of the famous China Composite Lost Wax Investment Casting manufacturers and suppliers. Our factory specializes in manufacturing of Composite Lost Wax Investment Casting. Lost wax casting builds a mold around a sacrificial wax model. After the mold investment is set, the wax is melted out and forms a cavity where the metal or glass flows in. Using this method of casting captures fine details in both metal and glass. This ancient method has been used since 3000 B.C. to visually capture the stories of ancient cultures and religions throughout history.

Process	Lost wax investment casting
Pattern	General Aluminum mould & Steel mold
Mould Material	Low Temperature Wax
Mould Shell	（the first two layers）Silica sol+Zircon Sand，(other layers ）Sodium Silicate
Technology Characteristics	Suitable for small products with high surface quality requirements
Tolerance Range	CT5-CT7
Single Weight	Below 2KGS
Surface Roughness	RA6.3
Casting Material Type	Carbon Steel, Alloy Steel, Grey Iron and Ductile Iron
Common Material Specification	GB, ASTM,SAE,AISI,DIN,BS,JIS,NF,EN,AAR,ISO
Product application field	automobile, Engineering Machinery, Railway, Marine, Agricultural Machinery, Mining and other industrial fields
Advantages& disadvantages	Environmental protection, surface roughness is better than RA6.3, but the price is 1.0-2.0 yuan /KG higher than sodium silicate

View as

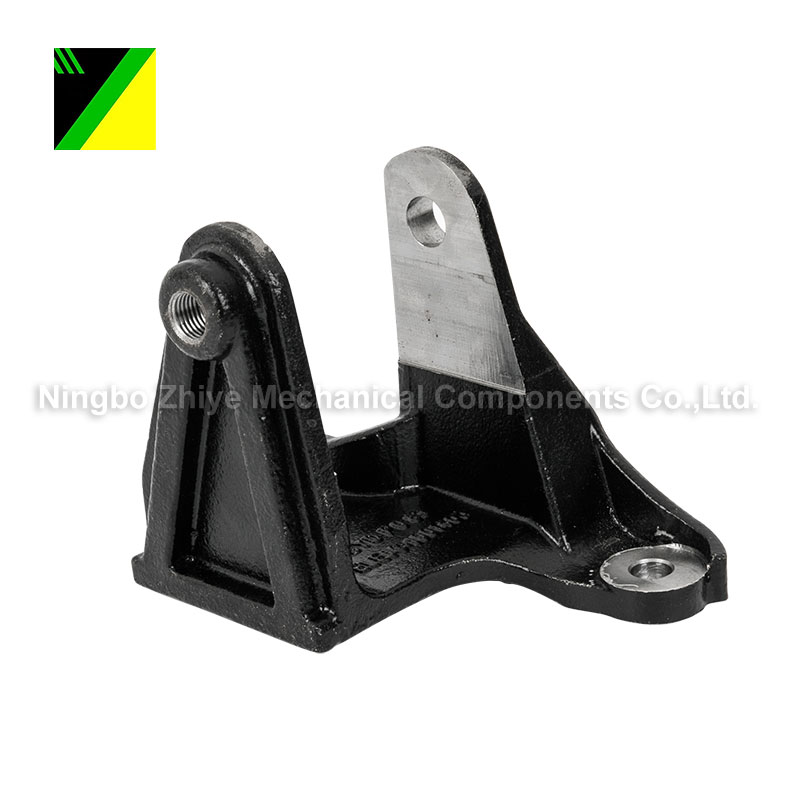

Composite Lost Wax Investment Casting for Automobile Bracket

Factory Directly Composite Lost Wax Investment Casting for Automobile Bracket Made in China with Low Price.Zhiye is a Composite Lost Wax Investment Casting for Automobile Bracket manufacturer and supplier in China.
