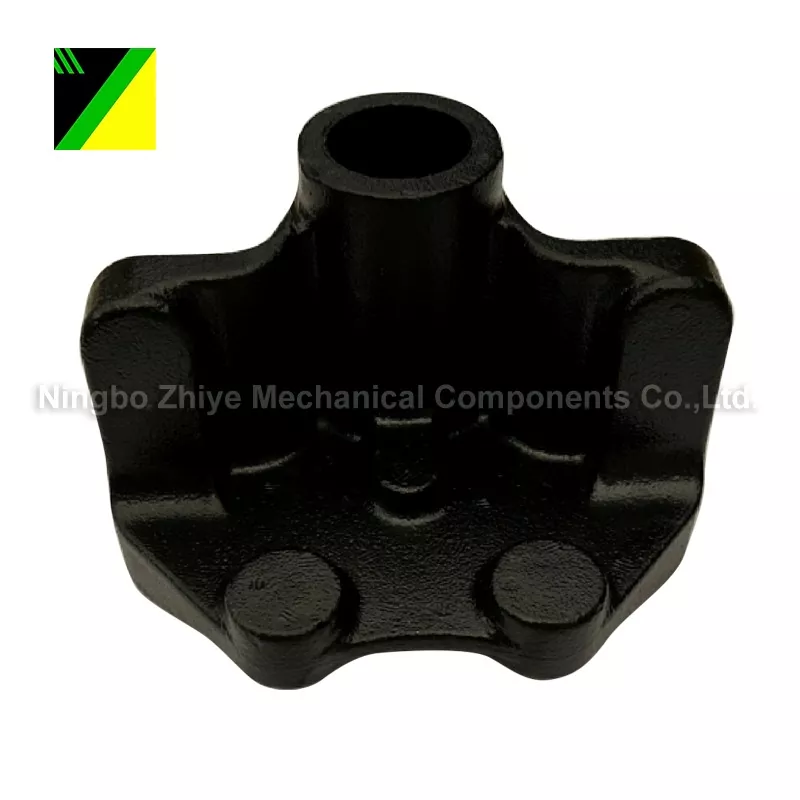

Ductile Iron Lost Foam Investment Casting Suspension Spring Hanger

Material: 70-50-05

Process: Lost foam casting

Gross weight: 4.3kg

Foam molding

Application field: Construction machinery

Surface treatment: Anti-rust coating, black powder coating

The product requires heat treatment and machining.

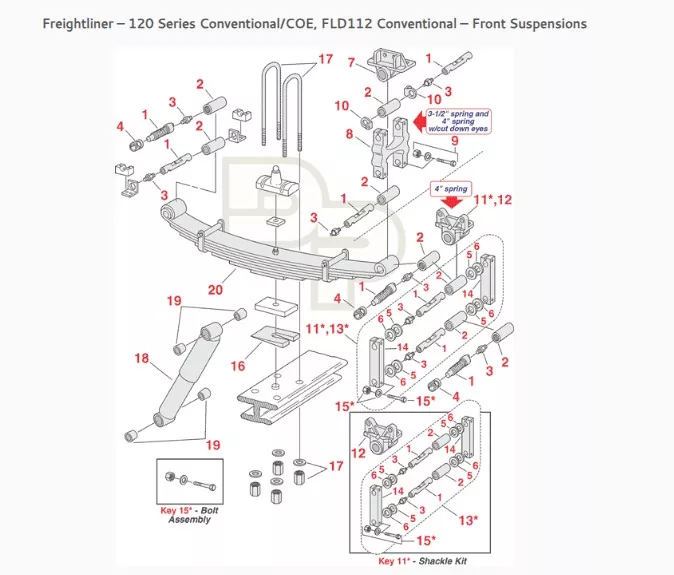

Specific application location of the product (see exploded view 11/12):

(Freight truck suspension system)

Product application: Trucks

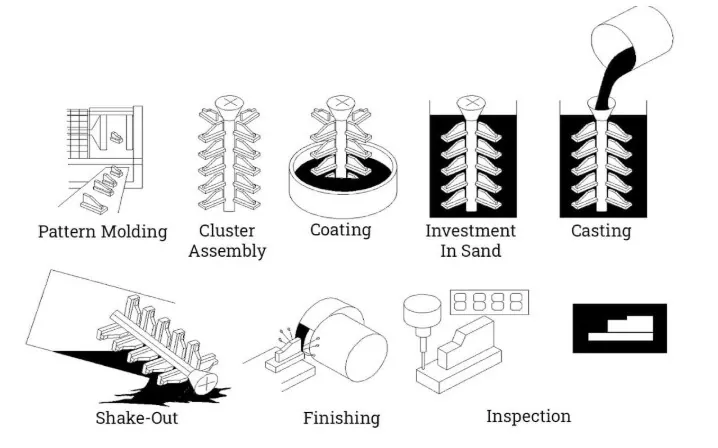

The manufacturing process for lost-foam casting products:

Quality control:

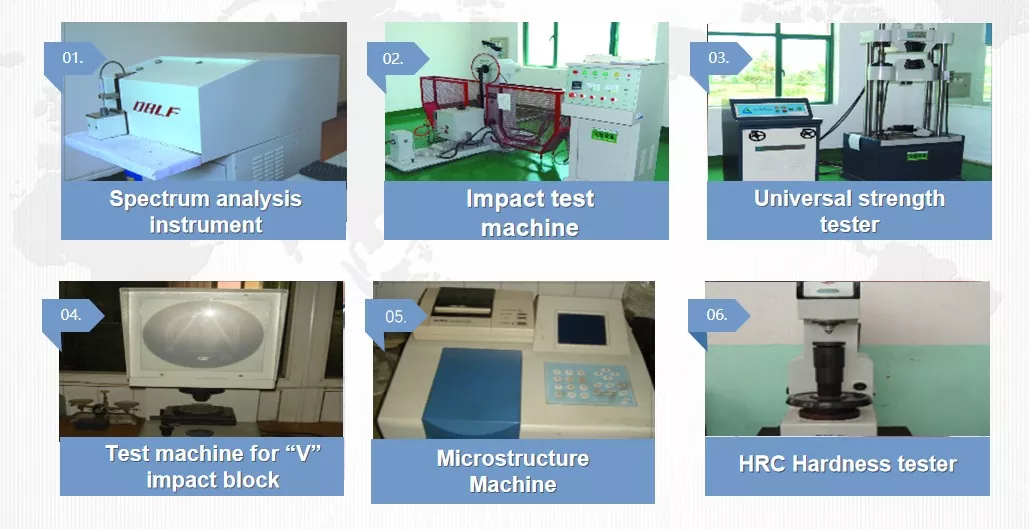

Physical and Chemical Inspection

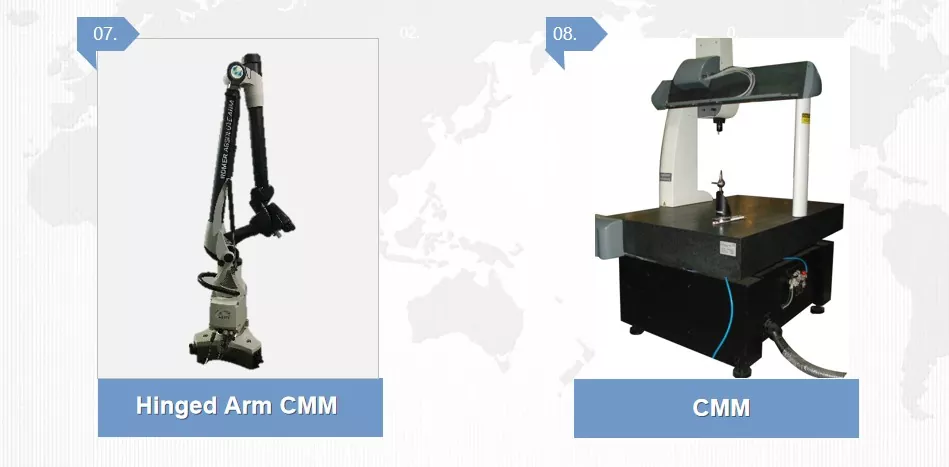

Dimensional Control

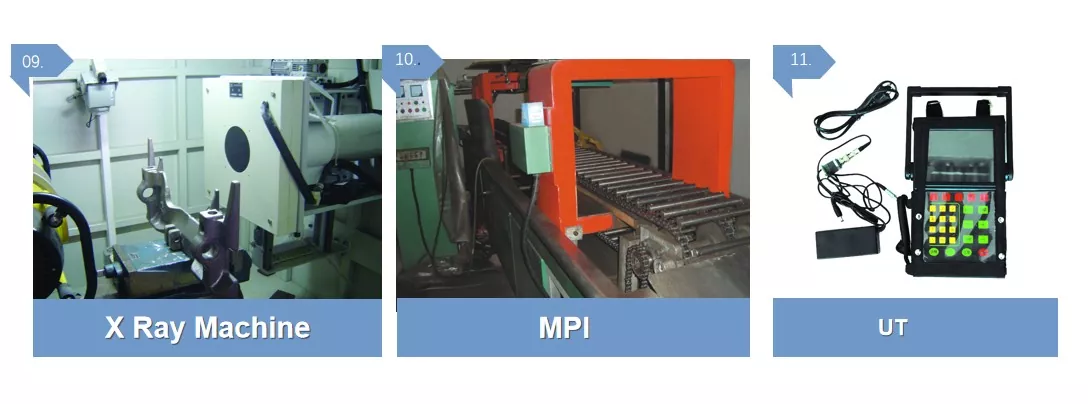

Non-Destructive Testing

Product Packaging:

Packaging can also be customized according to customer requirements. For precision machined products with special packaging needs, we can customize packaging materials such as blister packs and foam. The cardboard boxes can be customized with the customer's company logo; otherwise, plain cardboard boxes will be used.

Outer packaging:
Cardboard box

Inner packaging:
Bubble wrap can be added as needed.

Outer packaging:
Cardboard box with pallet

Outer packaging:
Wooden crate with a pallet
