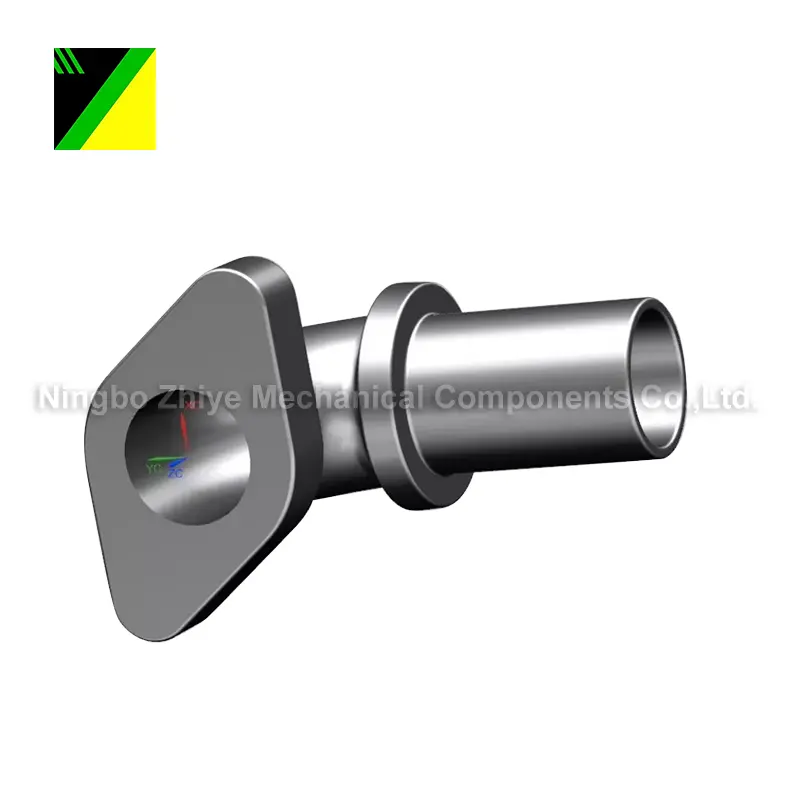

Ni-Resist Ductile Iron Casting Long

Material：QTANi35

Product name：casting long

Process：SIlica sol casting process

Gross weight：0.934kg

Wax：Green wax

Application area：Auto Exhaust System

Surface treatment：Anti-rust water

The product needs heat treatment & require machining

Ningbo Zhiye Mechanical Components Co.,Ltd is engaged in manufacturing and supplying of Ni-Resist ductile iron casting parts, which are Auto Exhaust System Components, made out of investment castings , these shifts are widely appreciated for features like corrosion resistance, abrasion resistance and dimensional accuracy.

1.Advantages of Investment Casting Components:

- Excellent and smooth surface finish

- Tight dimensional tolerance

- Complex and intricate shapes with design flexibility

- Capability to cast thin walls therefore a lighter casting component

- Wide selection of cast metals and alloys

- Draft is not required in the molds design

- Reduce the need for secondary machining

- Low material waste.

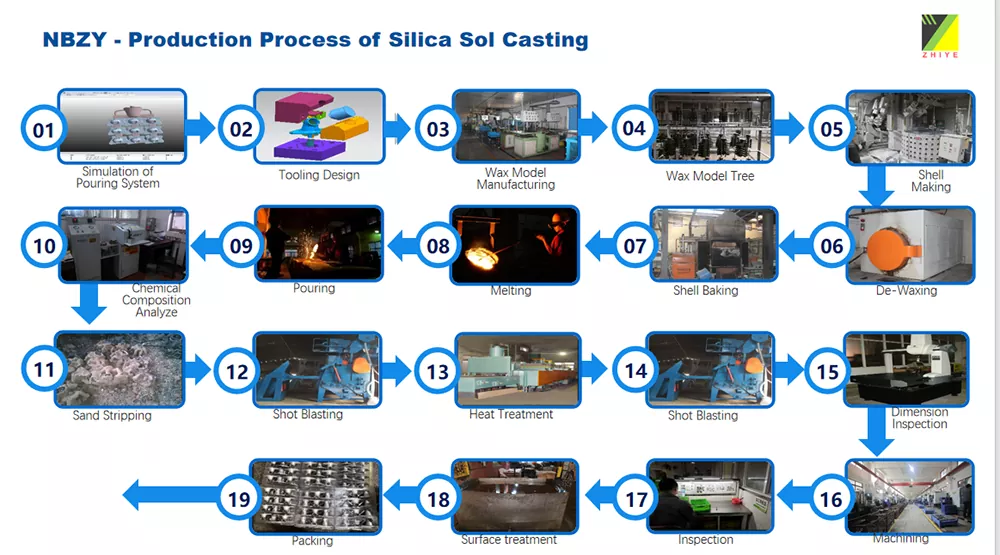

2.We will Produce Your Order According to This Process

In-depth understanding of your requirement→Custom production solutions→Schedule the production schedule→Start producing you order→Monitor production process→Inspect the product quality irregularly→Customized packaging solutions→Pre-shipment inspection and arrangement of shipment→After Service

The following are the characteristics of each grade of spheroidal graphite alloy.

Ni-Resist D-2 – Has good resistance to corrosion,corrosion-erosion and frictional wear. Can be used at temperatures up to 760°C(1400°F). Applications are pumps, valves, compressors, turbocharger housings and exhaust gas manifolds used with Ni-Resist D-2W, a primary ductile grade.

Ni-Resist D-2W – Has similar properties and applications as Ni-Resist D-2, but with better weldability when proper procedures are followed.

Ni-Resist D-2B – Has higher chromium content which results in better corrosion and corrosion-erosion resistance than Ni-Resist D-2. Has similar applications to Ni-Resist D-2.

Nicrosilal Spheronic – Has improved corrosion resistance in dilute sulfuric acid and good high temperature stability. Used for pumps, valves and other castings requiring higher mechanical properties.

Ni-Resist D-2C – Used for pumps, valves, compressors and turbochargers where high ductility is desired.Because of good resistance to wet steam erosion, another important application is in steam turbines. Sometimes used for non-magnetic components. Is also used for some low temperature applications.

Ni-Resist D-2M – Maintains ambient temperature mechanical properties down to -170°C(-275°F). Major uses are for refrigeration and cryogenic equipment.

Ni-Resist D-3A – Suggested where a high degree of wear and galling resistance are required along with moderate amounts of thermal expansion.

Ni-Resist D-3 – Has good corrosion resistance at elevated temperatures. Excellent corrosion-erosion resistance in wet steam and salt slurries. Uses include pumps, valves, filter parts, exhaust gas manifolds and turbocharger housings.

Ni-Resist D-4A – Has excellent corrosion and corrosion-erosion resistance with superior high temperature properties. Finds uses in pumps, armatures, exhaust gas piping and turbocharger parts.

Ni-Resist D-4 – Corrosion, corrosion-erosion and heat resistant properties are superior to those of Ni-Resists D-2 and D-3. Applications are similar to Ni-Resist D-4A.

Ni-Resist D-5 – Is used where low thermal expansion is required. Applications include machine tool parts, scientific instruments and glass molds.

Ni-Resist D-5B – Has low thermal expansion with high levels of heat and corrosion resistance. Has good mechanical properties at elevated temperatures. Used for low pressure gas turbine housings, glass molds and other elevated temperature applications.

Ni-Resist D-5S – Has excellent resistance to growth and oxidation at temperatures up to 1050°C(1930°F).

Low coefficient of thermal expansion with good thermal shock resistance. Used in gas turbines, turbocharger housings, exhaust manifolds and hot pressing dies.

Ni-Resist D-6 – Is non-magnetic with good mechanical properties. Used for switch insulator flanges, terminals,ducts and turbine generator parts.

FAQ

Q: What kind of file can you read?

A: PDF, IGS, DWG, STEP,etc...

Q: How long does a quotation take?

A: In most cases, we reply within 24 hours upon receiving your request for quotation. If there is any delay, we will notify you asap.

For different projects,the inquiry item quantities and difficulty are different,we will try to quote you asap,in general,it will take us 2-4 working days to quote you,including our communication on detailed technical issue.

Q:Are you trading company or manufacturer ?

A: We are direct factory with experienced engineers and employees as well as well-organized workshop.

Q:Can I check the products before delivery?

A: Yes. You can pay a visit to our factory by yourself or ask your colleague to come, or entrust a third party inspection company to do the inspection before delivery.

Q:Is it possible to know how are my products going on without visiting your company?

A: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.

Q: How do I know my design will be kept confidential?

A: We understand the sensitive nature of your design and will comply with requests for any non-disclose or confidentiality agreement. We also have a strict policy within our factory that without express permission, no photographs are ever allowed of customers’ products. Besides, without your approval, we would never allow any proprietary information to be disclosed to a third party and any copy would be prohibited. We can sign NDA files with you if you like,it is up to you.
