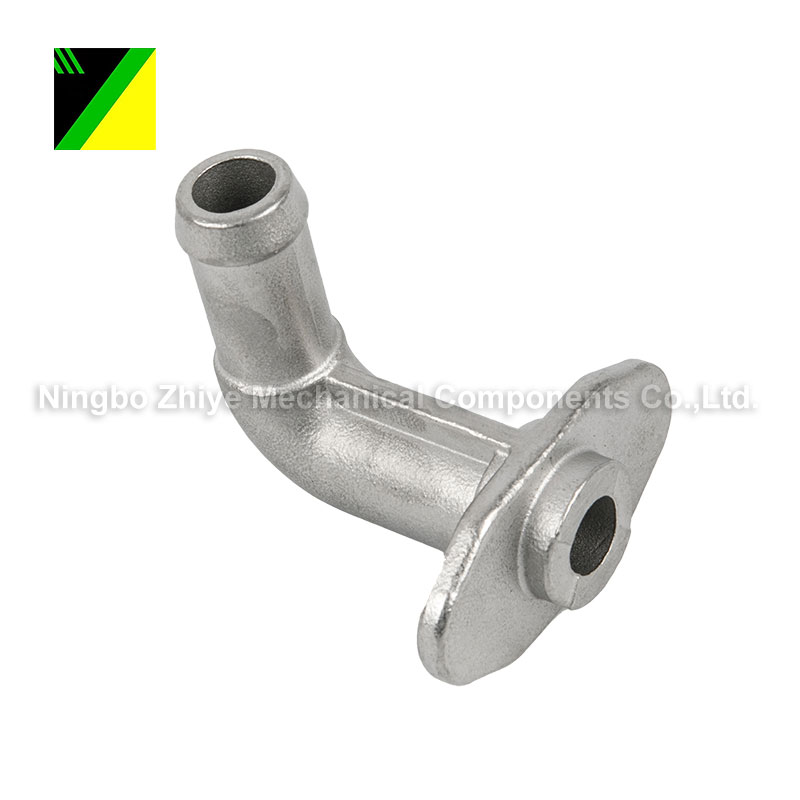

Stainless Steel Silica Sol Investment Casting Bending Tube Water Mouth

Hot sale quality Stainless Steel Silica Sol Investment Casting Bending Tube Water Mouth with Low Price made in China. Zhiye Mechanical is Stainless Steel Silica Sol Investment Casting Bending Tube Water Mouth manufacturer and supplier in China.

Send Inquiry PDF DownLoad

Product Description

Zhiye Mechanical as one of the professional China Stainless Steel Silica Sol Investment Casting Bending Tube Water Mouth manufacturers and China Stainless Steel Silica Sol Investment Casting Bending Tube Water Mouth factory, we are strong strength and complete management. Also, we have own exporting license. We mainly deal in making a series of Stainless Steel Silica Sol Investment Casting Bending Tube Water Mouth and so on.

Material:304

FOB Price:US$0.5-$9,999/piece

MOQ:200 pieces/item

Supply Capability:10,000 pieces/Month

Sea Port:Ningbo Seaport

Terms of Payment:T/T 30% in advance,balance 70% before shipment

Technique:Silica Sol Investment Casting

Gross Weight:0.187KG

Application Area:Automobile

Surface treatment:Acid-refined,Passivation

Heat Treatment:

Process	Silica sol Casting (Green Wax)
Mold	General Aluminum Mold & Steel Mold
Mold Material	Middle Temperature Wax
Mold Shell	Silica sol, Mullite Sand, Zircon Sand
Technology Characteristics	Suitable for producing small parts. Better precision. Better surface roughness. Can large extent reduce machining.
Tolerance Range	CT5 to CT6
Single Weight	0.01kgs to 30kgs
Surface Roughness	RA6.3
Casting Material Type	Carbon Steel, Alloy Steel, Stainless Steel, Ductile Iron.
Common Material Specification	GB, ASTM,SAE,AISI,DIN,BS,JIS,NF,EN,AAR,ISO
Product application field	Automobile, Engineering Machinery, Railway, Marine, Agricultural Machinery, Mining and other industrial fields
Advantages& disadvantages	Environmental protection, surface roughness is better than RA6.3, but the price is 1.0-2.0 yuan /KG higher than sodium silicate

Investment casting (silica sol process)

Investment casting offers unlimited freedom in design and material choices. Typical applications can be found in the automotive, pump and food industry, architecture, and general industrial engineering.

Benefits

● Precise tolerances

● Fine surface structure

● Thin walls are possible

● Small marks can be cast very clearly, such as letters or company logos

● Suitable for a wide variety of materials

● Complex shapes can be achieved without draft angles

Possible alloys

● Stainless steel and duplex grades (such as 304 (L) or 316 (L))

● Carbon steel, heat-resistant steel

Finishing options

● Electrolytic polishing

● Vibra-polishing

● Blasting

● Electrolytic zinc plating

● Pickling and passivation

● Hot-dip galvanising

● Chrome plating

● Mirror polishing

WHY CHOOSE US?

We have both casting and machining production lines, we can deliver finished parts including machining, which can not only save cost, but also controll the quality better.
Zhiye is located in NingBo in China, no matter sea or air shipment is preferred, our customers can enjoy convenient shipment from our company.
Quality is the most important factor when selecting a reliable casting or machining supplier. Zhiye also has set a complete quality control system to guarantee 100% qualified products before delivery
Competitive prices We control the production cost by optimizing the production process and utilize automatic equipments, while not compromising the quality.

Zhiye specializes in advanced and custom stainless steel castings for demanding industries.

Our stainless steel precision casting process is superior; we offer CNC machining and deliver industry-leading dimensional accuracy and tolerances Our casting foundry has the ability to work with a variety of stainless steel investment casts, delivering high strength and corrosion resistant parts. We’ve been perfecting our methods for decades, and we are one of the most trusted stainless steel precision casting foundries in the industry.

We will deliver accurate cost and time estimates for your stainless steel project. Our expert team will help you take care of all of the manufacturing logistics to give you accurate lead times and the highest quality product.

If your project requires corrosion resistance, heat resistance, or falls outside the scope of common stainless steels, we are the foundry you are looking for.
