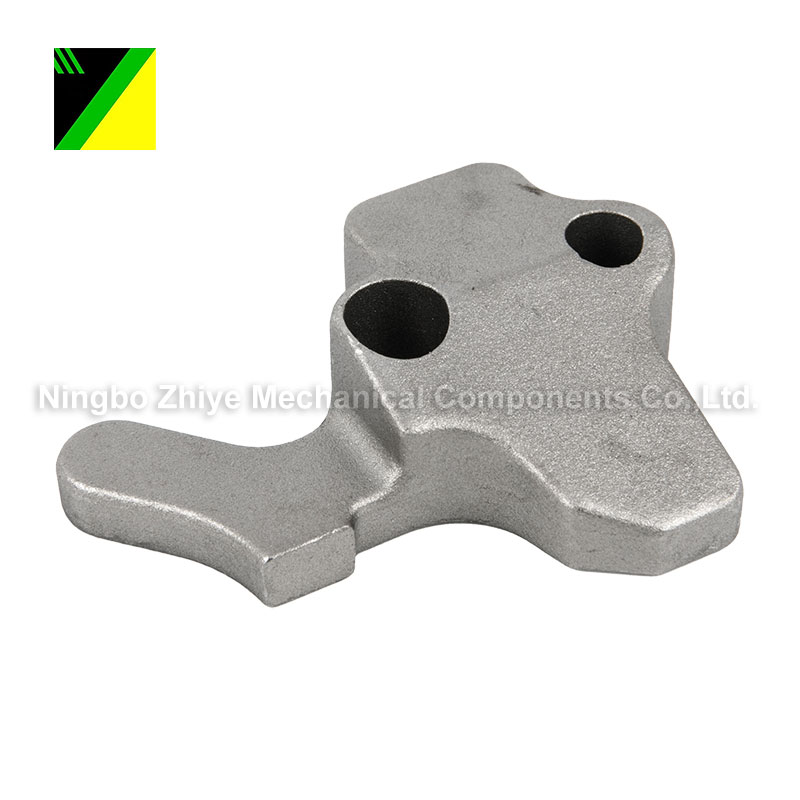

Alloy Steel Silica Sol Investment Casting Assembly
  • Alloy Steel Silica Sol Investment Casting AssemblyAlloy Steel Silica Sol Investment Casting Assembly

Alloy Steel Silica Sol Investment Casting Assembly

Alloy Steel Silica Sol Investment Casting Assembly castings are commonly used for pressure containing and structural applications due to the increased strength, hardenability, and resistance to wear and abrasion. Processed to obtain a wide range of properties, these alloys provide designers much flexibility and are used within many industries and applications. The relative lower cost also makes these alloys attractive for use where applicable.

Send Inquiry    PDF DownLoad

Product Description

Made for Strength

Alloy Steel Silica Sol Investment Casting Assembly are commonly used for pressure containing and structural applications due to the increased strength, hardenability, and resistance to wear and abrasion. Processed to obtain a wide range of properties, these alloys provide designers much flexibility and are used within many industries and applications. The relative lower cost also makes these alloys attractive for use where applicable.

The key to economical use of the investment casting process is to fully utilize its flexibility and dimensional capability by incorporating as much added value into the casting as possible, thus eliminating or minimizing welding or machining to provide a part of high integrity and tighter tolerances.

For example, traditionally machined features such as holes and slots are cast to size and machine quality surface finish of 125 micro inches is standard for the investment casting process.

Carbon Steel

The most common metal used to manufacture products, carbon steel is also known as plain steel because it is mainly carbon with no minimum percentage of other alloying elements. Increased carbon content makes the steel harder and stronger through applications of heat treatments, but it also makes it less ductile and lowers the melting point of the alloy.
Of all investment castings manufactured at Barron Industries’ investment casting foundry, approximately 30% are made of carbon steel. These precision machined castings are used in ground-based military vehicles, “roughneck” equipment for oil and gas exploration, and conveyorized material handling systems.

Low-Alloy Steel

Alloy steels are divided into low-alloy steels and high-alloy steels, with low-alloy steels most commonly used for industrial applications. Steel is deemed to be low-ally when the amount of added alloying material comprises less than 8 percent of the metal’s total weight. The additional elements are added to increase hardness and durability. Commonly added elements in low-alloy steel investment castings are chromium, vanadium, nickel and molybdenum. The percent composition of these various alloying elements is based on the intended use of the investment casting. Low-alloy steels gain strength through heat treatment. Barron’s low-alloy steel investment castings are also resistant to corrosion and tougher than normal carbon steel. Common uses for alloy steel investment castings include agricultural equipment, defense applications and performance-critical equipment for the oil and gas industry.

OUR SPECIALTY: UNIQUE NEEDS

In the metal casting foundry business since 1923, Barron Industries melts and pours both ferrous and non-ferrous materials. In addition to aluminum, alloy steels and stainless steel, Barron pours all alloys that can be air melted or inert atmosphere melted including 600 series Inconel alloys as well as Hastelloy X and C.


Material:Alloy Steel
Technique:Silica Sol Investment Casting
Gross Weight:0.5KG
Application Area:Automobile
Product Name:Alloy Steel Part
Anti-Rust:with anti-rust water
Heat treatment:As Cast,Is Fire,Tempering,Annealing,Quenching,Carburizing,Permeability,Thermal Refining,Hardening are available.

Material

Aluminum alloy ADC12, ADC10, A360, A380, A356,A413,B390,EN47100,EN44100

Magnesium alloy AZ91D, AM60B

Zinc alloy ZA3#,ZA5#,ZA8#,Zmark3,Zmark5,ZDC3

Brass:HPb59-1,HPb62-1

Processing Craft

Drawings→ mould making → die casting →rough machining → CNC machining →surface treatment →product checking→ packing →delivery

Tolerance

± 0.02mm

Surface Treatment

Electroplating, Chrome Plating, Zinc Plating, Nickel plating, Electrophoresis, Anodization, Polishing, Powder coating,
Sandblasting, Passivation, Spray painting, Etc.

Quality Assurance

ISO9001:2015 Certified, SGS Certification

Inspection

1.Foundry in-house: 100% inspection on critical dimension; 100% on appea rance.

2.Third Party inspection available upon requirement.

Mainly Testing Facility

Three-dimensional measuring instrument (CMM), Salt spray test box, Dynamic balance detector, Pneumatic detection

Quality Guarantee

Two years

Features & Advantage

1.High machining accuracy, the flatness within 0.1mm.

2.High finish appearance, smooth surface roughness is Ra1.6 after machining.

3.The machining precision is high and the assembly structure is seamless.

4.Smooth appearance, corrosion resistance.

5.Pass Salt Spray Test with 144 Hours.

Standard

1.Aluminum alloy : ISO3522-84, ASTMB85-96, ASTMB597-98

2.Magnesium alloy : ISO/DIS16220-1999, ASTMB93/B93M-98,JISH2222-1991

3.Zinc alloy: ISO301-1981, ASTMB86-98, ASTMB240-98, ASTMB327-98




Sand Casting

Investment Casting (Water Glass )

Investment Casting (Silica Sol)

Shell Moulding Casting

Gravity Die Casting

High-Pressure Die Casting

Lost Foam Casting

Metals

Ferrous and Non-Ferrous

Most Ferrous

Most Ferrous

Most Ferrous

Only Non-Ferrous

Only Non-Ferrous

Most Ferrous

Size of Components

All Sizes

Small and medium

Small

Medium

Medium and big

Small and medium

Medium

Weight of Components (Kg)

1(kg) - Many tonnes

0,25 - 50 (kg)

0,1 - 30 (kg)

1 - 50 (kg)

1 - 100 (kg)

0,2 - 20 (kg)

1 - 200 (kg)

Flexibility of design for conversion from weldments to castings

High

Very Excellent (WELD2CAST most popular method)

Excellent

High

Moderate

Relative high

High

Needs of secondary machining

High

Moderate

Low

Low

Moderate

Very Low

Low

Product manufacture cost

Low

Low

Medium

Medium

Low

Medium

Medium/High

Dimension casting tolerance acc. with ISO 8062

CT10 - CT12

CT7 - CT9

CT4 - CT6

CT7 - CT8

CT7 - CT8

CT4 - CT5

CT7 - CT8

Minimum of cast wall thickness

6 - 8 mm

4 - 5 mm

2 mm

5 mm

4 mm

2,5 mm

3 mm

Draft angle need (deg ° )

± 2,0 °

± 1,0 °

± 0,5 °

± 1,0 °

± 1,0 °

± 0,5 °

± 1,5 °

Surface finish (Ra) µ

Ra 50 µ

Ra 25 µ

Ra 3,2 µ

Ra 25 µ

Ra 12,5 µ

Ra 3,2 µ

Ra 25 µ

Casting Alloys

Iron,Ductile Iron,ADI - (Austempered ductile iron),Low-Alloy Steel,High-Alloy Steel,Stainless Steel,Aluminium,Copper,Bronze

Low-Alloy Steel,High-Alloy Steel,Stainless Steel,Hastelloy

Low-Alloy Steel,High-Alloy Steel,Stainless Steel,Duplex Stainless Steel,Titatium

Ductile Iron,ADI - (Austempered ductile iron),Low-Alloy Steel,High-Alloy Steel,Stainless Steel,Duplex Stainless Steel

Aluminium,Copper

Aluminium,Zinc,Magnesium

Iron,Ductile Iron,ADI - (Austempered ductile iron),Low-Alloy Steel,High-Alloy Steel,Copper

Process

Silica sol Casting (Green Wax)

Mold

General Aluminum Mold & Steel Mold

Mold Material

Middle Temperature Wax

Mold Shell

Silica sol, Mullite Sand, Zircon Sand

Technology Characteristics

Suitable for producing small parts. Better precision. Better surface

roughness. Can large extent reduce machining.

Tolerance Range

CT5 to CT6

Single Weight

0.01kgs to 30kgs

Surface Roughness

RA6.3

Casting Material Type

Carbon Steel, Alloy Steel, Stainless Steel, Ductile Iron.

Common Material Specification

GB, ASTM,SAE,AISI,DIN,BS,JIS,NF,EN,AAR,ISO

Product application field

Automobile, Engineering Machinery, Railway, Marine, Agricultural

Machinery, Mining and other industrial fields

Advantages& disadvantages

Environmental protection, surface roughness is better than RA6.3,

but the price is 1.0-2.0 yuan /KG higher than sodium silicate

Q1:How to customize products?
A1:Attach your drawings with details (material, surface treatment, quantity and special requirements etc).

Q2:Can you make the parts based on the sample?
A2:Yes, we could provide a rough cost and will measure and design the drawing according to your sample.


Q3: Can my design be safe after sending it to you?
A3: We can sign the NDA before you send it.

Q4:What kind of production service do you provide?
A4:Mold making, lost wax casting, die casting,sand casting,CNC machining, stamping, plastic injection, assembly, and surface treatment.

Q5:How does the company control the quality?
A5: Inspection product with professional equipment , like CMM, height gauge, caliper & micrometer, Ultrasonic fault detector,
Hardness tester, Spectrum analyzer, impact testing machine, quadratic equipment .

Q6:How could I pay them?
A6:Paypal, Western Union, T/T, L/C are acceptable, so just let us know which is convenient for you.
