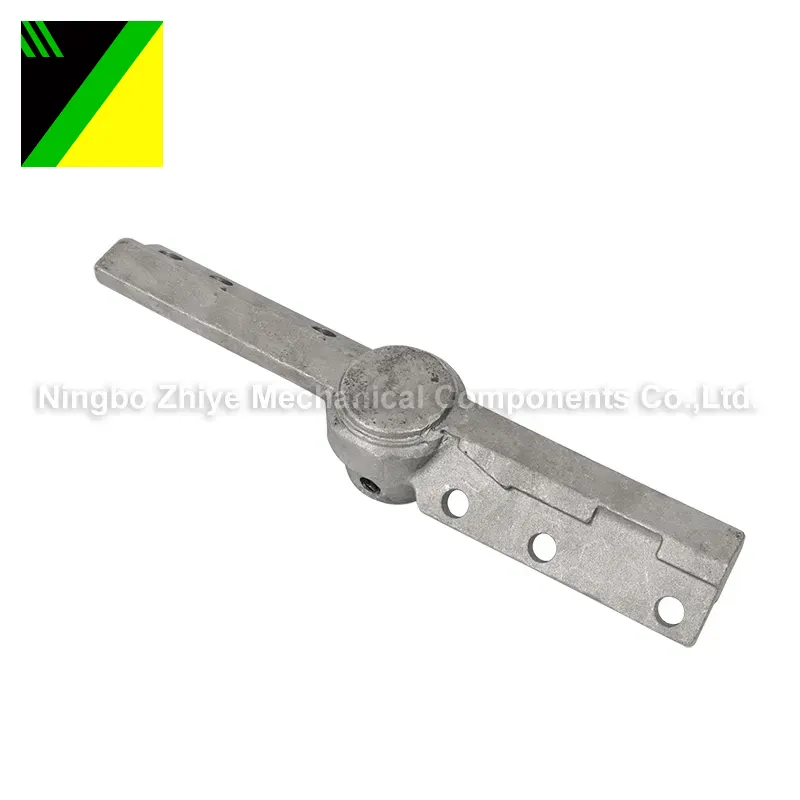

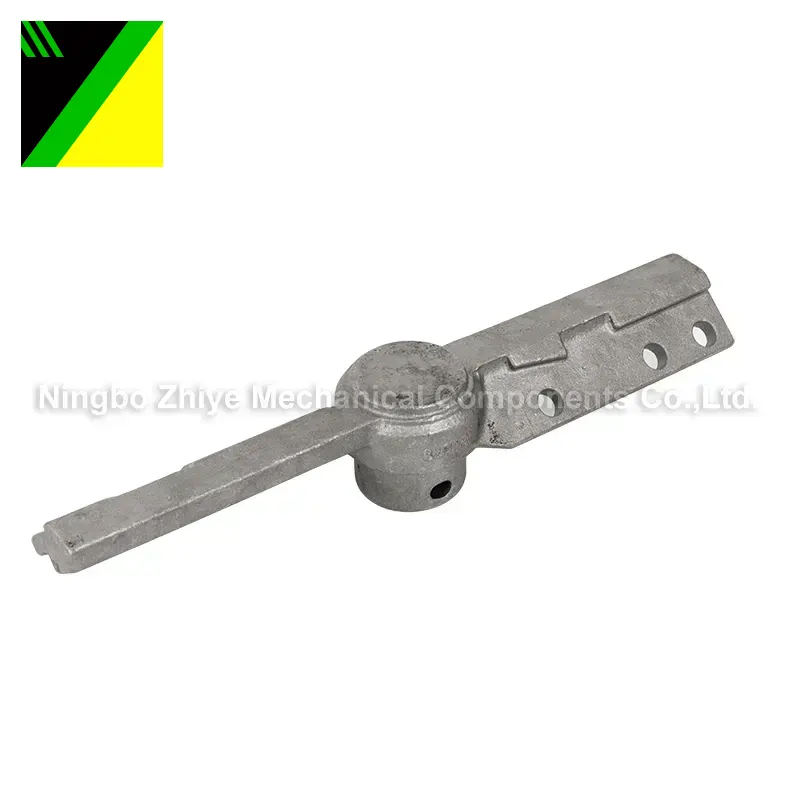

Water Glass Investment Casting for Bracket Assembly

Water Glass Investment Casting for Bracket Assembly, also called sodium silicate casting, It is a casting production method of investment casting,using water glass as the binder for the shell to cast.The Water glass casting technology is one of the most common investment casting process in China. Water Glass Casting technology is mostly used for low alloy steel,carbon steel and stainless steel components,specially those large castings. Water glass investment casting allows to produce steel castings from 0.05kg-80kgs. Water glass casting is cost effective compared to silica sol casting process. Welcome you buy and purchase them from us. Water glass casting components are mainly used for complex shaped parts. Applications of this technique are widely presented in the production of trailers, agricultural machinery and offshore industry. The water glass lost wax casting process provides a far superior surface finish and dimensional precision comparing to sand casting. And we can offer the competitive prices together with rapid delivery.

Send Inquiry PDF DownLoad

Product Description

Material:8630
Technique:Water Glass Investment Casting
Weight:6.8KG
Application Mechanical Engineering
Product Name:Bracket
Anti-rust Method:Anti-rust water
Heat Treatment Way:Thermal Refining

PRECISION INVESTMENT CASTING BY “LOST WAX” AND “WATER GLASS” PROCESS

Our Ningbo Zhiye Mechanical Components Co.,Ltd.core business: production of steel and non-ferrous castings through “lost wax” process; machining (even starting from solids and bars) according to customer’s drawing; fast prototyping and die-casting,Water Glass Investment Casting for Bracket Assembly.
We complete the range of our services with the mere machining of semi-finished items, even the most demanding ones such as the plastic injection molds meant for production of thermo-plastic items.
Please kindly browse it,do it,and take a trial order now.

Water Glass Investment Casting for Bracket Assembly

Process	Water glass Casting
Mold	General Aluminum Mold & Steel Mold
Mold Material	Low Temperature Wax
Mold Shell	Sodium Silicate, Quartz Sand
Technology Characteristics	Suitable for complicated structures. Reduced machining allowance. Decrease production cost.
Tolerance Range	CT7 to CT9
Single Weight	0.5kgs to 200kgs
Surface Roughness	RA12.5
Casting Material Type	Carbon Steel, Alloy Steel, Grey Iron and Ductile Iron
Common Material Specification	GB, ASTM,SAE,AISI,DIN,BS,JIS,NF,EN,AAR,ISO
Product application field	Automobile, Engineering Machinery, Railway, Marine, Agricultural Machinery, Mining and other industrial fields

Water Glass Investment Casting for Bracket Assembly
