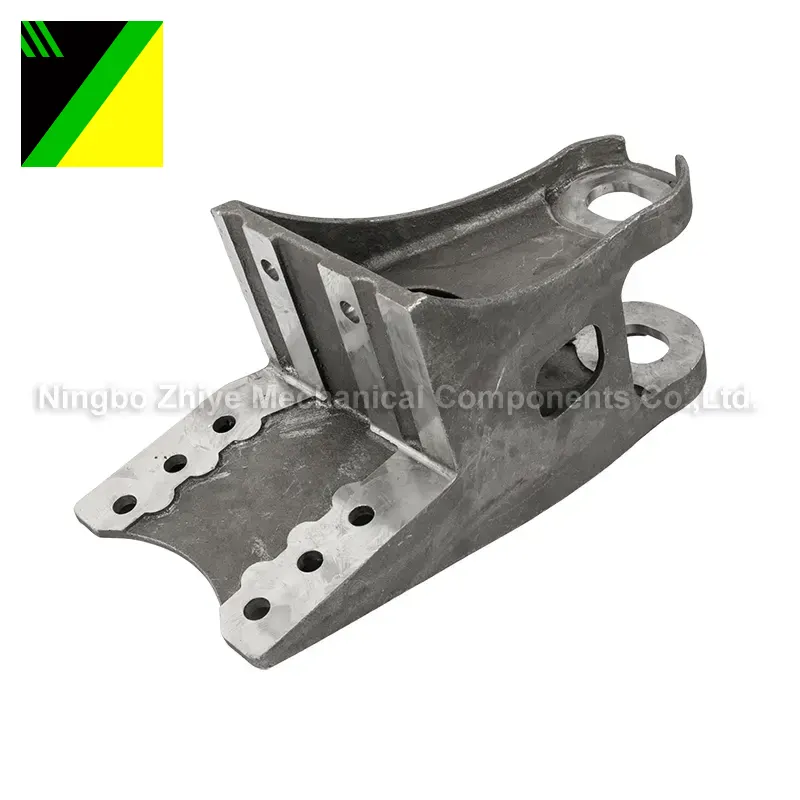

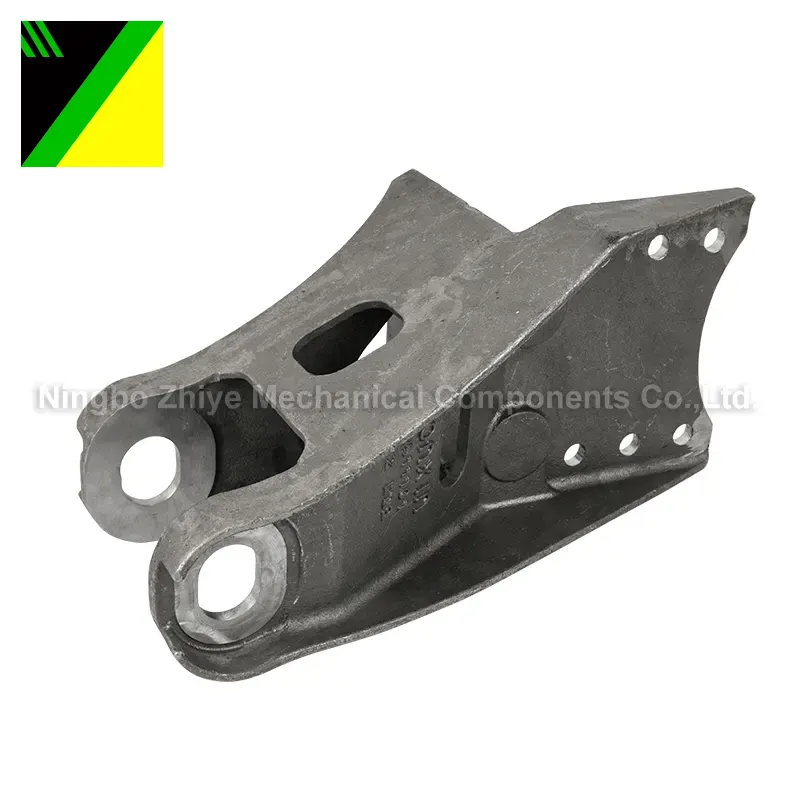

Water Glass Investment Casting for Bracket Parts
  • Water Glass Investment Casting for Bracket PartsWater Glass Investment Casting for Bracket Parts
  • Water Glass Investment Casting for Bracket PartsWater Glass Investment Casting for Bracket Parts

Water Glass Investment Casting for Bracket Parts

Zhiye is one of the biggest Water Glass Investment Casting for Bracket Parts manufacturer and factory in making this water Glass Investment Casting of Bracket part for Truck application in China. Water glass casting is very similar to investment casting (i.e. the lost wax method), but is particularly suited to larger castings and is cheaper to produce. The process provides a far superior surface finish and dimensional precision to that achieved through sand casting, and more complex shapes can be achieved.

Send Inquiry    PDF DownLoad

Product Description

Zhiye is China manufacturer & supplier who mainly produces Water Glass Investment Casting for Bracket Parts with many years of experience. Hope to build business relationship with you.Ningbo Zhiye was founded in 2011, specialized in Investment casting parts. We have two types of investment cast processes: Silica Sol process and the water glass process.

Material:90-60
Technique:Water Glass Investment Casting
Weight:21.9KG
Application Area:Truck Chassis
Product Name:Bracket
Anti-rust Method:Anti-rust water
Heat Treatment Way:Thermal Refining


Customized alloy steel water glass investment casting fixing bracket

Company Introduction:

We have two types of investment cast processes: Silica Sol process and the water glass process.

The Silica Sol process is used to cast complex high quality parts with requirements of a very good surface finish and close dimensional tolerances.
The water glass process is typical of the process in the early stages of investment castings.  It generally is capable of much larger castings than the Silica Sol process, but does not have as good of surface finish or tolerances. The water glass process provides parts that have better surface finish and dimensional tolerances than sand castings.

Silica Sol investment cast parts can range from a weight of just a few ounces to approximately 80 pounds. If you are concerned with precision in very small parts, we are especially proficient at very fine detail work including teeth and serrations. Water glass castings may range in weight from several ounces to approximately 200 pounds.

First article layouts and spectrometer material certifications are provided with all first article samples.

A variety of secondary operations can be performed on both types of investment castings. They include heat treatment, machining, plating, painting, polishing and buffing, assembly services and even custom packaging.


Water Glass Investment Casting for Bracket Parts

Water Glass Investment Casting for Bracket Parts

Water Glass Investment Casting for Bracket Parts

Water Glass Investment Casting for Bracket Parts

Water Glass Investment Casting for Bracket Parts


Our Services

1. 20 years of manufacturing success in China and exporting experience worldwide
2.Global specialized producer of machined castings.
3. We combine our own resources with some other well-developed factories to fulfill a wide range of contract manufacturing capabilities. Working with one source, saves time and money.
4. Satisfied supplier of 7 big companies from North America and Europe.
5. Low cost mold materials and focus on efficiency offer a cost-effective solution to your metal component purchasing requirements.
6. Normal lead times range from 1 to 6 weeks for fully-machined components.
7. Strong capacity to help customers develop new projects.
8. Our sales department is 24 hours available in order to help our customers solve problems quickly.
Contact Ningbo Zhiye today and begin enjoying the benefits of high quality and low price products

Process

Water glass Casting

Mold

General Aluminum Mold & Steel Mold

Mold Material

Low Temperature Wax

Mold Shell

Sodium Silicate, Quartz Sand

Technology Characteristics

Suitable for complicated structures. Reduced machining allowance. Decrease production cost.

Tolerance Range

CT7 to CT9

Single Weight

0.5kgs to 200kgs

Surface Roughness

RA12.5

Casting Material Type

Carbon Steel, Alloy Steel, Grey Iron and Ductile Iron

Common Material Specification

GB, ASTM,SAE,AISI,DIN,BS,JIS,NF,EN,AAR,ISO

Product application field

Automobile, Engineering Machinery, Railway, Marine,

Agricultural Machinery, Mining and other industrial fields

Water Glass Investment Casting for Bracket Parts
