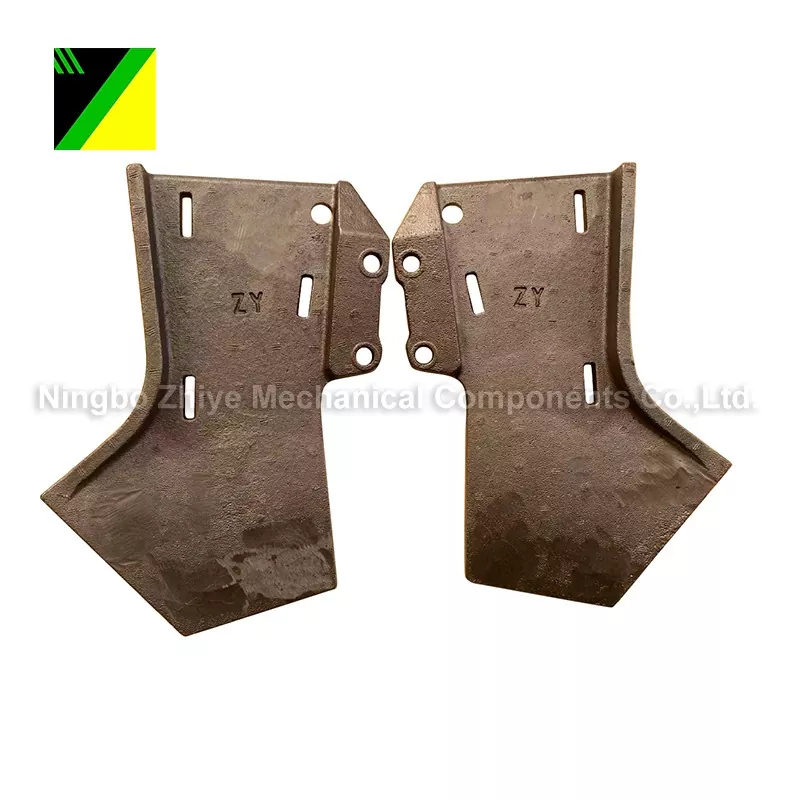

High-Chromium Cast Iron Floating Carbide Scraper

Material: CLASS 3(A)

Surface Treatment: Anti-rust water

Heat Treatment: Normalizing

Process: Lost foam casting

Weight: 2.292kg

Application: Agriculture machinery

FERTILIZER  APPLICATION SYSTEM

Advantages of Lost Foam Casting

1. High Design Flexibility:

Lost foam casting enables designers to create extremely complex shapes, including those that are difficult or impossible to achieve using traditional casting methods. This flexibility opens up new design possibilities, especially in aerospace, automotive, and precision equipment manufacturing.

2. Improved Cast Quality:

Since the castings are produced without the need to remove the mold, they are subjected to almost no mechanical stress during the molding process. This results in a significant reduction of internal defects such as air holes and sand holes, thereby enhancing the overall performance and durability of the castings.

3. Reduced Subsequent Processing Requirements:

Lost foam casting can produce castings that are close to the final size, with better surface finish and higher dimensional accuracy. This means that the subsequent mechanical processing requirements for the castings are significantly reduced, saving processing costs and time for users.

4. Economic Benefits:

Although the initial equipment investment for lost foam casting is relatively high, due to its high production efficiency, high material utilization rate, and reduced subsequent processing steps, its economic benefits are significant when producing in large quantities.

5. Wide Applicability:

This casting method is not only suitable for various metals and alloys, but also can meet the needs of small batches to large-scale production, making it applicable in different industries and production scales.

6. Low Environmental Impact:

Compared to traditional casting methods, lost foam casting generates less waste and pollutants during the process, especially in reducing the sand-type waste commonly found in sand casting. This makes lost foam casting a more environmentally friendly manufacturing option.

7. Improved Production Efficiency:

The lost foam casting process is simplified, with the time from model production to casting formation shortened. Especially for complex or large castings, its production efficiency advantage is particularly significant.

In summary, lost foam casting technology, with its significant advantages, plays a crucial role in improving production efficiency, reducing costs, and optimizing product performance. The advantages of lost foam casting enable it to meet the increasing demands of modern manufacturing for complex, high-performance products. As this technology continues to progress and optimize, we can expect that lost foam casting will play a more important role in the future manufacturing industry, providing strong support for creating higher-quality, more cost-effective products.

Defects and Limitations of Lost Foam Casting:

Like other casting processes, the lost foam casting method also has its shortcomings and limitations. Not all castings are suitable for production using the lost foam casting method, so a specific analysis is required. Several factors need to be considered to determine whether to use this process.

Batch size of the casting: The larger the batch size, the greater the economic benefits.

Casting material: The order of suitability is generally: gray cast iron - ferrous alloys - ordinary carbon steel - ductile iron - low carbon steel and alloy steel;

Casting size: The main consideration is the usage range of the corresponding equipment (such as vibration tables, sandboxes).

Casting structure: The more complex the casting structure, the more it can demonstrate the superiority and economic benefits of the lost foam casting process. For structures with narrow internal channels and interlayers, pre-experiments and production need to be conducted before using the lost foam casting process.

Lost foam molds: The better the mold, the higher the product quality.

The Relationship Between High-Chromium Cast Iron and Agricultural Machinery Castings

High-chromium cast iron has a close connection with agricultural machinery castings. Due to its excellent wear resistance and corrosion resistance, high-chromium cast iron is often used to manufacture components in agricultural machinery that are prone to wear, such as parts for seeders, plowshares, and wear-resistant liners, to enhance the durability and service life of agricultural machinery components and meet the high-strength working requirements of agricultural machinery in complex and harsh environments.

1. Demand-driven: Agricultural machinery components often operate in environments with strong abrasive properties, such as soil, sand, and water, and have extremely high requirements for the wear resistance and corrosion resistance of the parts.

2. Material advantages: The high chromium content in high-chromium cast iron and the large amount of carbides and chromium solid solutions give agricultural machinery components extremely high hardness, wear resistance, and certain corrosion resistance.

3. Applications:

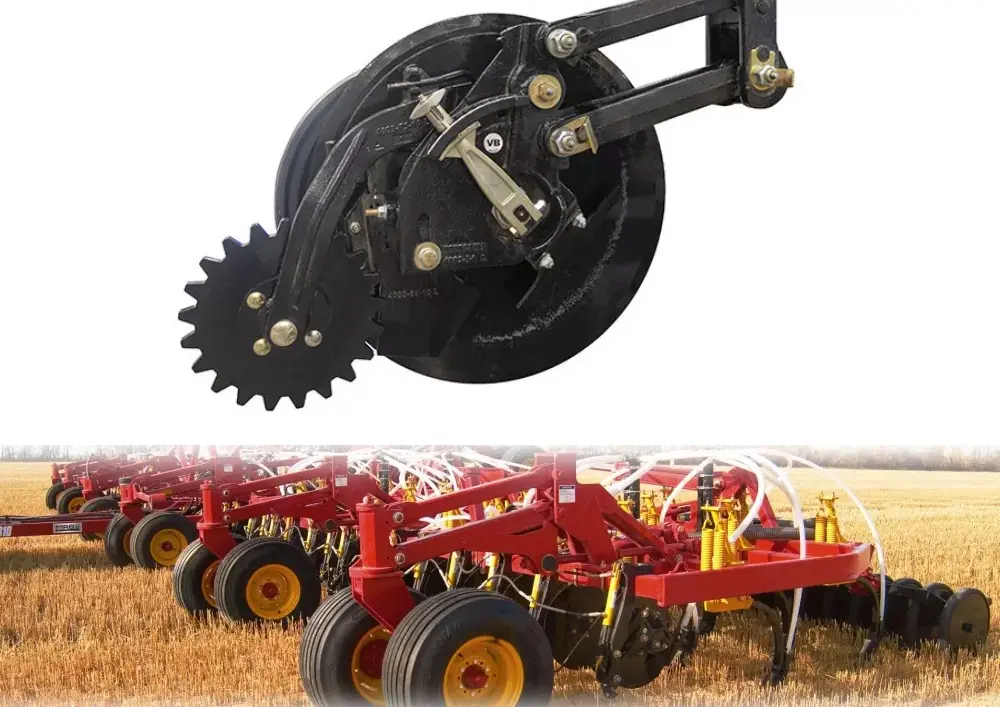

Seeder parts: Such as sowing discs and seed tubes, which are prone to wear.

Plowshares and plow heads: In direct contact with the soil, requiring high wear resistance.

Other wear-resistant parts: Such as pump impellers and bushings.

4. Technological development: By precisely controlling the chemical composition and heat treatment process, the microstructure and properties of high-chromium cast iron can be further optimized to make it more suitable for the specific working conditions of agricultural machinery.

High-chromium cast iron is an important wear-resistant material in agricultural machinery castings. It provides excellent wear resistance and corrosion resistance, extending the service life of agricultural machinery, reducing maintenance costs, and is one of the key materials for improving the performance and reliability of agricultural machinery.

Our Quality and Service Commitment

Full-process Quality Control: From the spectral analysis of raw materials, the monitoring of the melting process, to the heat treatment of castings (such as normalizing, tempering, and quenching) and non-destructive testing (such as UT, MT, etc.), every step is strictly controlled to ensure the stability of product performance.

Certification and Standards: Our production management system has passed international certifications such as ISO9001, and the products can comply with various domestic and international standards including ASTM, DIN, GB, and JIS.

Flexible Customization Services: We offer the "customization based on drawings and samples" service. We can recommend or develop the most suitable materials and process solutions according to your specific working conditions (wear type, temperature, impact force, etc.).

Choosing us is not just choosing a product, but also choosing a long-term guarantee for efficiency improvement and cost control.

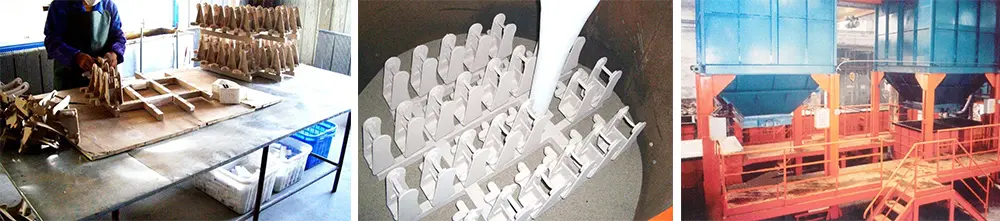

Lost foam production workshop
