What Is 42CrMo Alloy Steel Casting and How Does It Support Demanding Mechanical Components?

Table of Contents

1. What Is 42CrMo Alloy Steel Casting?
2. Material Characteristics of 42CrMo Steel
3. Chemical Composition and Material Identification
4. How the Casting Process Affects Component Quality
5. Why Heat Treatment Matters
6. Machining and Dimensional Accuracy
7. Quality Control Points for 42CrMo Castings
8. Common Applications
9. How to Specify a 42CrMo Casting
10. What to Look for in a Manufacturing Partner
11. Frequently Asked Questions
12. Final Considerations

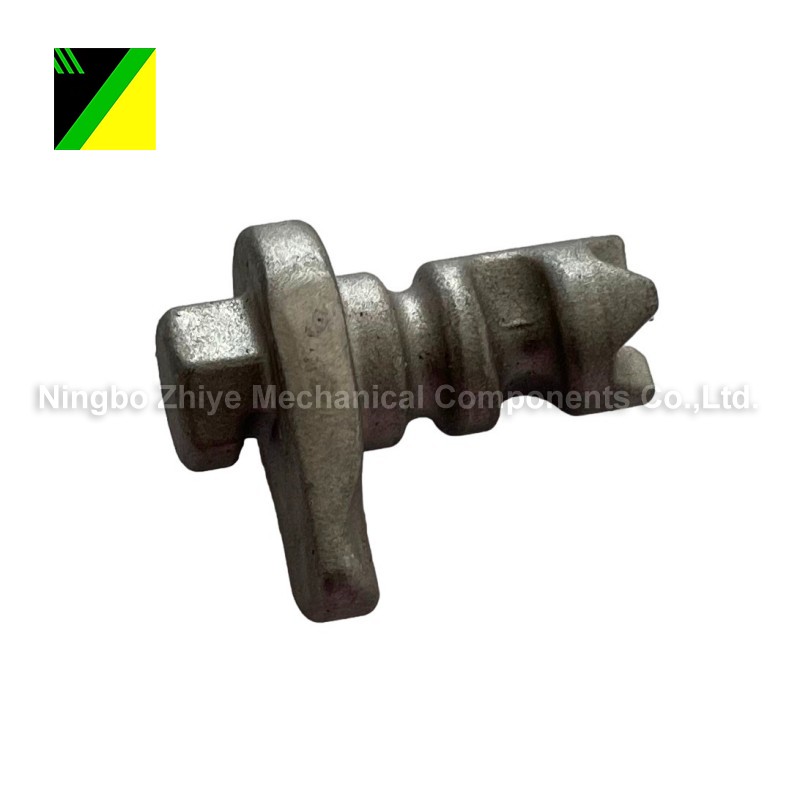

1. What Is 42CrMo Alloy Steel Casting?

42CrMo alloy steel casting refers to a cast mechanical component produced using a chromium-molybdenum alloy steel specified as 42CrMo or an applicable equivalent grade. The designation is associated with medium-carbon, low-alloy engineering steel intended for applications where mechanical strength and toughness are important.

42CrMo4, identified as material number 1.7225 under European standards, is commonly compared with AISI 4140, JIS SCM440, and related grades. However, buyers should not assume that different standards are automatically interchangeable. Chemical limits, heat-treatment conditions, product form, mechanical requirements, and inspection standards should always be confirmed against the drawing or purchasing specification.

Unlike a simple steel casting used for low-stress structures, a 42CrMo component is often selected for parts exposed to impact, repeated loads, friction, torque, or elevated mechanical stress. This makes production consistency particularly important.

2. Material Characteristics of 42CrMo Steel

The appeal of 42CrMo steel comes from the balance between strength, hardenability, toughness, and machinability that can be achieved through suitable processing and heat treatment. Chromium contributes to hardenability and wear-related performance, while molybdenum helps improve hardenability and resistance to tempering effects.

Published technical studies show that heat treatment can substantially change the microstructure and mechanical response of 42CrMo4. Quenching can produce a martensitic structure, while tempering modifies hardness, strength, elongation, and impact behavior. The final properties therefore depend not only on the nominal material grade but also on the actual heat-treatment route.

3. Chemical Composition and Material Identification

A typical 42CrMo4 specification contains approximately 0.38–0.45% carbon, 0.60–0.90% manganese, around 0.90–1.20% chromium, and approximately 0.15–0.30% molybdenum, with silicon, phosphorus, sulfur, and other elements controlled according to the applicable standard. Exact limits should always be taken from the governing material specification rather than from a generic online material chart.

This distinction is especially important for international purchasing. A buyer may describe a component as “42CrMo,” while the manufacturer may need to determine whether the required specification is EN 10083-3 42CrMo4, a GB/T grade, AISI 4140, JIS SCM440, or another formally specified material.

4. How the Casting Process Affects Component Quality

Casting transforms molten alloy into a near-net-shape component, but the quality of the final product depends heavily on what happens during filling and solidification. For alloy steel components, the manufacturer must consider mold design, gating, risers, thermal gradients, shrinkage, gas management, and solidification behavior.

A technically suitable casting process should minimize defects that could become critical after machining or during service. Typical concerns include shrinkage cavities, porosity, inclusions, cracks, incomplete filling, dimensional distortion, and excessive machining allowance.

• Pattern and mold design: Establishes the basic geometry and influences dimensional consistency.
• Gating system: Controls how molten metal enters the mold and helps reduce turbulence.
• Riser design: Supports feeding during solidification to compensate for shrinkage.
• Pouring control: Helps maintain stable filling and reduce process variation.
• Solidification management: Influences internal soundness and microstructural uniformity.
• Cleaning and finishing: Removes gates, risers, flash, and other casting-related excess material.

For complex parts, casting simulation and engineering review can be valuable before production because changes to feeding or gating are generally easier to make during process planning than after repeated production failures.

5. Why Heat Treatment Matters

Heat treatment is one of the most important stages in producing a performance-oriented 42CrMo component. The same nominal steel grade can demonstrate significantly different mechanical behavior depending on its thermal history.

Common treatment routes may include normalizing, annealing, quenching, tempering, or combinations selected according to the required component properties. Research on 42CrMo4 demonstrates that quenching can increase strength and hardness while reducing elongation, whereas subsequent tempering can modify the balance between strength, hardness, ductility, and impact behavior.

For production components, the objective should not simply be achieving the highest possible hardness. Excessive hardness without adequate toughness may create an undesirable property balance. A better approach is to establish target mechanical properties based on the component's actual service conditions.

6. Machining and Dimensional Accuracy

Casting can significantly reduce the amount of material that must be removed compared with machining a component entirely from a solid billet. However, castings normally require machining on critical surfaces such as bores, shafts, mounting faces, threads, sealing surfaces, and precision locating areas.

Machining allowances should therefore be established during the casting design stage. Insufficient allowance can make it difficult to achieve final dimensions after surface cleanup, while excessive allowance increases machining time, material consumption, and production cost.

7. Quality Control Points for 42CrMo Castings

A reliable 42CrMo alloy steel casting program should treat quality as a process rather than a final inspection event. Each stage should have defined controls and acceptance criteria.

Depending on component geometry and service conditions, non-destructive testing such as ultrasonic, magnetic particle, radiographic, or other appropriate methods may be specified. The exact method should be selected according to the component risk, geometry, applicable standard, and customer requirements rather than automatically applying every inspection method to every part.

8. Common Applications

42CrMo-type alloy steels are widely used for mechanically demanding components. Their combination of strength and toughness makes them suitable for parts where a basic carbon steel may not provide the required performance.

9. How to Specify a 42CrMo Casting

One of the most common purchasing problems is providing only the material name without enough technical information. “42CrMo casting” identifies the general material direction, but it does not fully define the finished component.

For a more accurate quotation and production plan, buyers should prepare the following information:

• 2D engineering drawing and/or 3D CAD model
• Required material standard and grade
• Approximate casting weight and finished weight
• Annual or batch production quantity
• Required heat-treatment condition
• Mechanical-property requirements
• Machining requirements and critical tolerances
• Surface finish requirements
• Non-destructive testing requirements, if applicable
• Packaging and shipping requirements
• Applicable customer or industry specifications

Providing these details early can reduce repeated technical clarification, prevent quotation assumptions, and make it easier for the manufacturer to evaluate tooling, casting method, machining requirements, inspection procedures, and production cost.

10. What to Look for in a Manufacturing Partner

Choosing a manufacturer for alloy steel castings should involve more than comparing the unit price. The production partner should be able to understand the relationship between material, casting design, heat treatment, machining, inspection, and final application.

Ningbo Zhiye Mechanical Components Co.,Ltd. can be positioned as a manufacturing partner for customers requiring customized mechanical components rather than simply purchasing generic steel material. For project-based sourcing, the ability to review drawings, understand functional requirements, coordinate production processes, and maintain consistent inspection standards can be as important as the material itself.

A strong supplier relationship should begin with technical communication. Before mass production, it is useful to confirm the material grade, casting method, heat treatment, machining datum, critical tolerances, inspection plan, packaging requirements, and sample approval procedure.

11. Frequently Asked Questions

12. Final Considerations

42CrMo alloy steel casting is not simply a matter of melting a high-strength steel and filling a mold. The final component is the result of a connected manufacturing chain that includes material control, casting design, melting and pouring, solidification, heat treatment, machining, inspection, and documentation.

For buyers, the most effective approach is to define the component by its actual engineering requirements rather than by the material name alone. A clear drawing, appropriate material specification, defined heat-treatment condition, controlled dimensional requirements, and suitable inspection plan can significantly improve communication between the engineering team and the manufacturer.

For demanding applications, working with an experienced mechanical component manufacturer can also help identify production risks before they become costly problems. Ningbo Zhiye Mechanical Components Co.,Ltd. can support customers looking for customized alloy steel mechanical components and project-based manufacturing solutions.
