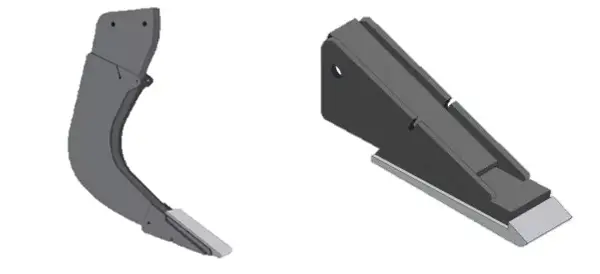

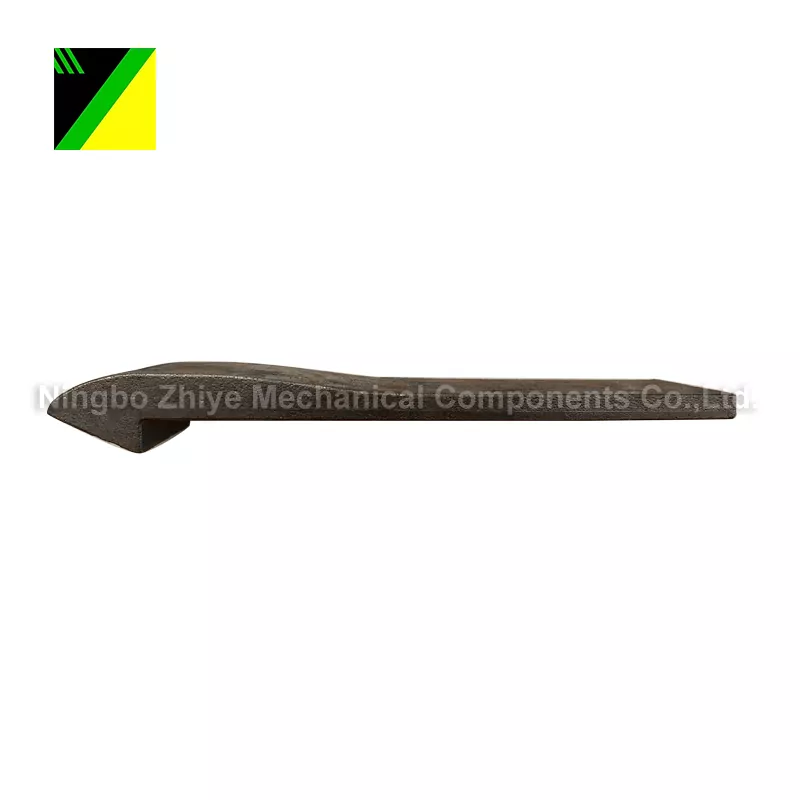

High-Chromium Cast Iron Flat Chrome insert

Product Name: Flat Chrome Insert

Material: CLASS 3(A)

Surface Treatment: Blasting

Heat Treatment: Normalizing

Process: Lost Foam Casting

Weight: 2.38kg

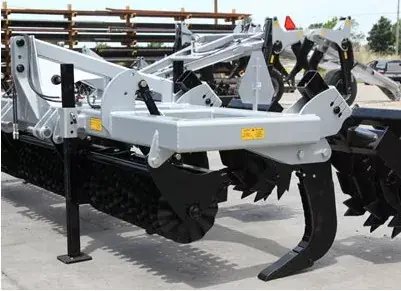

Application: Agriculture Machinery (Agriculture machinery)

What Makes Lost-Foam Casting Stand Out Among Other Types of Casting?

Lost-foam casting has definite advantages over conventional casting techniques like sand casting or investment casting. Complex shapes and elaborate designs are possible that could be difficult with other approaches. Lost-foam casting can also reduce material waste and streamline manufacturing procedures, making it more effective and economical.

What Is the Process of Lost-Foam Casting?

Here is a step-by-step explanation of the procedure:

1. Use Foam Molds for Foam Pattern and Gating System Production

In lost-foam casting, foam patterns mimic the precise geometry of the finished metal object. The gating system has passages that direct molten metal into the mold and may be integrated into the foam pattern or attached (glued on) later. These passages enable precise designs and streamlined metal flow, resulting in castings that are accurate and effective.

2. Bond Patterns and Runners To Create a Mold Bundle Module

Tightly bind the foam patterns and gating mechanisms to form the mold bundle module prior to  casting. This assembly makes the casting process easier by ensuring precise component alignment, reducing mistakes, and facilitating reliable, consistent manufacture of complex metal parts.

3. Apply Dip Paint and Allow the Paint To Dry

An application of refractory dip paint follows the assembly of the mold bundle module. When this paint dries, it creates a protective ceramic coating that improves the mold's surface toughness, heat resistance, and capacity to handle the temperature and pressure of the molten metal.

4. Place the Module in a Sandbox and Fill It With Dry Sand

Coat the mold bundle module, set it within a molding flask, and cover it in dry sand. This phase ensures accurate replication of the desired metal part by supporting the module's shape, keeping it in place during casting, and facilitating uniform sand compaction.

5. Vibrate Molding To Fill the Cavity and Compact the Sand

Sand may now flow into every nook and cranny of the mold bundle module thanks to vibrations imparted to the molding flask. Through careful sand compaction and the elimination of air spaces, this procedure enables the creation of a high-quality casting with exact measurements and fine details.

6. Pour Molten Metal To Vaporize the Foam and Create Desired Castings

Carefully pour the molten metal into the mold, replacing the vaporized foam patterns. The metal solidifies to create the desired casting as it fills the spaces the foam left behind. As a result, the finished product closely resembles the planned form while minimizing flaws and blemishes. This technique supports complicated and complex shapes.

7. Clean the Castings After They Have Cooled

After the castings have cooled and set, clean the casting to get rid of any remaining sand, ceramic shells, and other impurities. To produce high-quality and aesthetically pleasing metal parts, this phase means that the final castings fulfill quality requirements, have smooth surfaces, and are ready for subsequent finishing procedures or assembly.

The lost-foam casting process significantly lowers labor requirements and waste production. It is also possible to recycle used dry sand, which is in line with objectives for lowering emissions and using less energy.

What Industries Use the Lost-Foam Casting Products?

A wide range of industries, including: the automotive, marine, military, and agricultural fields, find use for lost-foam casting. It is a useful approach in creating components for these various sectors.

What Is the Quality of Lost-Foam Casting Products?

Lost-foam casting produces high-quality components with intricate details due to its ability to replicate complex shapes accurately. The durability of these products depends on factors such as: the chosen material, design considerations, and proper casting techniques. When executed with precision, lost-foam casting can yield durable and reliable products.

What Is the Difference Between Lost-Foam Casting and Sand Casting?

The table we’ve put together below helps detail the differences between lost-foam and sand casting

Q: What information should I include in my purchase order?

A: Please ensure the following information is included:

● Part number or drawing reference

● Material specifications

● Quantity and unit price

● Payment terms and conditions

● Contact information for order confirmation and updates Delivery address, preferred shipping method, and required delivery date

● Any special instructions or required certifications

● Including this details will help us deliver the products you need accurately and on time.

Q: What information is needed for a quote?

A: To provide an accurate quote, we need detailed information to ensure your specific needs are met and to offer the most competitive price. This information includes:

● CAD drawings or sketches of the parts

● Material type

● Required quantity and delivery time

● Any special requirements, such as surface treatment or heat treatment

● Please feel free to contact us and send your request directly to zhiye@zy-casting.com or ycn@zy-casting.com. Our team will contact you within 24 hours of receiving your inquiry.
